Haltech Elite Series
Haltech is a world leader in engine management systems.
Haltech Elite
Elite 750
Features:
• Waterproof Case (IP67) (with USB Cover Fitted)
• 34 Position AMP connector
• 6 x Fuel Injection Outputs (Peak And Hold (0-8A Peak / 0-2A Hold)
• 6 x Ignition Outputs
• 2 x Engine Position Inputs with extensive trigger type support
• 2 x Digital Pulsed Inputs (Digital inputs only supported)
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 1 x Throttle Position Input
• 1 x Coolant Temperature Input
• 1 x Air Temperature Input
• 1 x CAN Bus communication for Haltech CAN Expansion
• Internal 3Bar Map Sensor rated up to 200kPa of Boost (2bar/29psi)
• On-board Data Logging
• ESP Calibration Software – Intuitive and easy to use
• Multi-fuel Support – Support for Petrol (Gasoline),Methanol and Ethanol
• E85 Flex Fuel Ready – Direct connection to sensor
• User definable tables
• Closed Loop O2 Control
• ECU comes fully enabled, no additional charges for advanced features.
• Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems or Haltech Multiplex CDI systems
• Load sensing by: Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
Inputs and Outputs:
• 6 x Fuel Injection Outputs (Peak And Hold (0-8A Peak / 0-2A Hold)
• 6 x Ignition Outputs
• 2 x Engine Position Inputs with extensive trigger type support
• 2 x Digital Pulsed Inputs (Digital inputs only supported)
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 1 x Throttle Position Input
• 1 x Coolant Temperature Input
• 1 x Air Temperature Input
• 1 x Internal 3Bar Map Sensor rated up to 200kPa of Boost (2bar/29psi)
• 1 x CAN Bus communication for Haltech CAN Expansion
Data Logging:
• On-board Data Logging
• Data logging,Up to 10 channels of logging,
• Fastest Sample Rate 20ms
• 512Kb Internal Storage
Price starting at
TT 8000.00

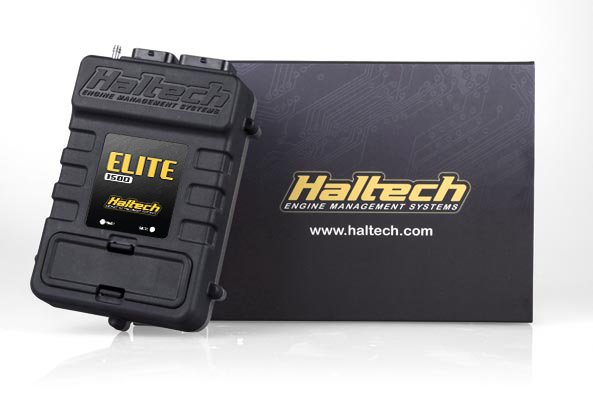

Elite 1500
Features:
• Waterproof Case (IP67)
• 4 x Fuel Injection Outputs
• 4 x Ignition Outputs
• 20 x Digital Outputs
• 10 x Analogue Voltage Inputs
• USB Laptop Communications up to 1 MB/s
• Drive By Wire (DBW) Throttle Control
• 6 x Engine Position Inputs with extensive trigger type support
• Programmable Injector Peak and Hold Currents
• OBDII Capable – Set and clear diagnostic trouble codes, view live engine data
• ESP Calibration Software – Intuitive and easy to use
• Dual CAN Bus communication for OEM and Haltech CAN Expansion
• User definable 5D Tuning – Tune by gear, Cam angle or any channel for ultimate flexibility
• Variable cam control – Independently control up to 4 camshafts
• Auto tune capabilities – Short and Long term fuel, ignition, boost and idle control learning
• Staged Fuelling – Up to four stages of injectors
• Single Channel Knock Control – with high speed digital filtering for accurate detection
• Multi-fuel Support – Support for Petrol (Gasoline), LPG, Methanol and Ethanol
• E85 Flex Fuel Ready – With additional boost tables
• Closed Loop Boost Control – Multiple Modes – Tune by gear, wheel speed or time
• Closed Loop Idle Control – With learning for consistent idle stability
• Closed Loop 02 Control – Dual bank control for precise tuning
• Anti-Lag and Launch Control – Drag and Rally modes
• Data logging – Internal memory & external laptop logging
• Multi Level Engine Protection – Set limits for sensors and protect your engine
• ECU comes fully enabled, no additional charges for advanced features
Starting Price at
TT 10500.00

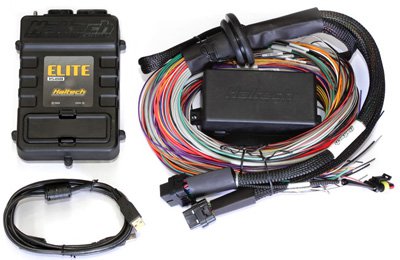

The Elite 1500 Flying Lead Kit includes:
• Elite 1500 ECU
• Premium Universal Wiring Harness Kit
• Moulded 6 circuit Haltech Fuse block
• 4 Relays, USB Software key
• Programming Cable
• Custom mounting plate.
Elite 2500
FEATURES:
• Waterproof Case (IP67)
• 8 x Fuel Injection Outputs
• 8 x Ignition Outputs
• 28 x Digital Outputs
• 10 x Analogue Voltage Inputs
• USB laptop communications
• Drive By Wire (DBW) Throttle Control
• 6 x Engine Position Inputs with extensive trigger type support
• Programmable Injector Peak and Hold Currents
• OBDII Capable – set and clear diagnostics trouble codes
• New “ESP” calibration software – More intuitive and easier to use than ever
• Dual CAN Bus communications for OEM and Haltech CAN expansion
• User definable 5D Tuning – Tune by Gear, Cam Angle or any channel for ultimate tuning flexibility
• Variable Cam Control – Independently Control up to 4 camshafts
• Dual Channel Knock Control – With FFT analysis for accurate detection
• Auto Tune Capabilities – Short and Long term fuel, ignition & boost learning
• Staged Fuelling – Up to four stages of injectors
• Multi-fuel Support- Support for Petrol (Gasoline), Methanol and Ethanol
• E85 Flex Fuel Ready – With additional boost tables
• Closed Loop Boost Control – Multiple Modes – Tune by gear, wheel speed or time
• Closed Loop Idle Control – With learning for consistent idle stability
• Closed Loop 02 Control – Dual bank control for precise tuning
• Anti-Lag and Launch Control – Drag and Rally modes
• Data logging – Internal memory & external laptop logging
• Multi Level Engine Protection – Set limits for sensors and protect your engine
• ECU comes fully enabled, no additional charges for advanced features
Start Price at
TT 13800
